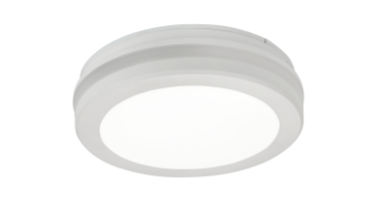

Water proof ceiling light
Waterproof, suitable for wet location

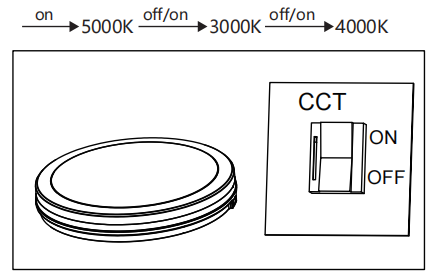

3 CCT PUSH switch
Traic dimmable
Input Voltage: 100-130V
50,000hrs life design for driver and LED
Warranty : 5 years
PRODUCT DESCRIPTION
Item | 8 inch | 12 inch | 16 inch |
Model | FS-FSXDD-8C-12W-CCT | FS-FSXDD-12C-18W-CCT | FS-FSXDD-16C-24W-CCT |
Certification | ETL, ES | ||
CCT | 3000K/ 4000K/ 5000K PUSH Switch | ||
Input Voltage | 100-130V/ 60Hz | ||
Power | 12W | 18W | 24W |
Power factor | PF≥0.7 | ||
Light efficiency | 80lpw | ||
CRI | 80Ra | ||
Dimming | TRAIC | ||
Beam Angle | 120° | ||
LED | Hongli 2835 18V60mA 18PCS x 2 | Hongli 2835 18V60mA 28PCS x 2 | Hongli 2835 18V60mA 32PCS x 2 |
Product structure | Φ202x51mm | Φ302x56mm | Φ402x56mm |
Working Life | 50,000H | 50,000H | 50,000H |
Oper. Temperature(℃） | -15℃-40℃ | -15℃-40℃ | -15℃-40℃ |
