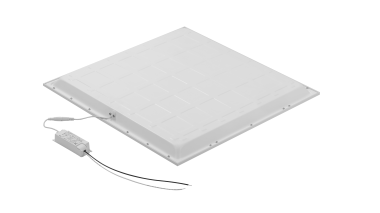

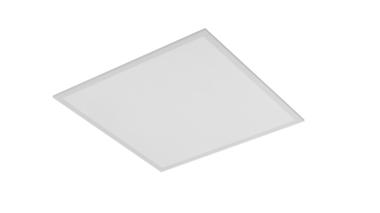

Back-lit panel light
26mm height available
UGR<19 (optional)
High efficiency, up to 130lm/w
1-10V, DALI dim (optinal)
50,000hrs lifetime design for driver and LED
With PMMA lens last for 10 years
5 years warranty
Item | 6060 | 30120 | 60120 |
Model | FS-ZXS-595x595 | FS-ZXS-295x1195 | FS-ZXS-595x1195 |
Certification | TUV-CE, CB, RoHS, ERP | ||
CCT | 3000K/4000K/5000K/6500K | ||
Driver type | CUPOWER brand, isolated, flicker free | ||
Input Voltage | 200-240V, 50/60Hz | ||
Power | 30W/36W/40W | 30W/36W/40W | 50W/60W |
Power factor | PF≥0.9 | ||
Light efficiency | 100/120/130 lm/w | ||
CRI | 80/90 Ra | ||
UGR | <22/ <19 <16 | ||
SDCM | <5 | ||
Dimming | 1-10V, DALI, Traic available | ||
Beam Angle | 120°/ 90° | ||
LED | Hongli 2835 9V100mA 48PCS | Hongli 2835 9V100mA 48PCS | Hongli 2835 9V100mA 96PCS |
Product size | 595x595x33mm | 295x1195x33mm | 595x1195x33mm |
Life span | 50,000H | ||
IP level | IP40 | ||
Material | SPCC housing + AL frame + PS diffuser + PMMA lens | ||
Oper. Temperature | -15℃- 40℃ | ||
Warranty | 5 years | ||
